PRD 24V 105AH Lithium Battery for Scrubbers
Category：
Optional function：
Bluetooth
Function
Communication
Function
Heating
Function
Benefits
300 %
THRICE THE POWER OF LEAD-ACID BATTERIES
1/3
ONE THIRD OF THE WEIGHT
3 times
CHARGING SPEED
5 years
WARRANTY
| Specification | Application | ||

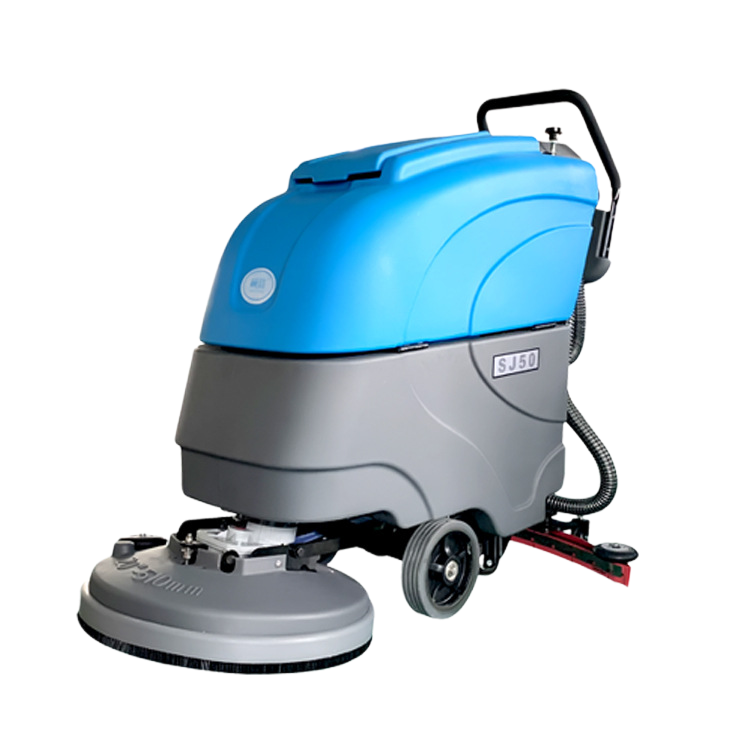

| Brand name | PRD | ☑ Floor Scrubber | |
Rated capacity | 105AH | □ Sweeper | |
Rated votage | 25.6V | □ Aerial Work Platform | |
Charging voltage | 29.2V±0.2V | □ Heavy Duty Truck | |
Rated charging current | 15A | □ Golf Cart | |
Maximum charging curent | 50A | □ Forklift | |
Rated discharge current | 50A | □ Recreational Vehicle | |
Maximum discharge current | 100A | □ Yacht | |
Cut-off voltage | 20V±1V |
| |
Internal resistance | ≤20mΩ | ||
| Charging temperature range | 0~55℃ | ||
| Discharge temperature range | -20~55℃ | ||
| Storage temperature range | 0~50℃（Short-term storage time is less than 1 month） | ||
| Weight (about) | 52.9 lb（24kg） | ||
| Dimension | 13.8*11.6*8.6 in；（350*296*220mm） | ||
| Norms | CE/MSDS/UN38.3 | ||
| Warranty | 5 years | ||
| OEM/ODM | Available | ||
| Functions (custom-made) | Heating module, CAN/RS485 communication protocol, voice function | ||
Our Factory Strength
Mass Production
PRD has a factory with floor area of over 7500 square meters, 2 SMT production lines, 2 battery production lines, and 2 charger production lines. Annual production capacity is100,000 lithium batteries and 200,000 chargers which are widely used for cleaning machines, forklift trucks, aerial platforms, golf carts and other industrial and commercial equipment. We provide customers with eco-friendly, safe and high-quality lithium-ion batteries.
Safety and Reliability
The safe operation system of PRD's lithium batteries covers every stage, from strict selection of raw materials to production process, quality testing, patent certification, and presentation of safety technology, with the goal of ensuring safe operation and continuous innovation. This means that each user can be confident that they can use our batteries in industrial applications, achieving improved efficiency and quality while significantly reducing the risk of safety incidents.
Rigorous Production Process
According to ISO 9001 management standards, PRD has established a comprehensive quality management system and a mature supply chain system, aiming to achieve lean production and efficient control. RPD strictly implements 5S management system at all levels, encompassing production environment, production efficiency, and product quality control, thereby creating high-efficiency, high-quality lithium batteries.
One-stop service
PRD offers a one-stop solution for Li-ion batteries, catering to the diverse needs of users. From selecting the optimal cells, designing BMS circuits, structural design, to charger development, we provide efficient and safe green energy solutions for major users.
Our R&D Strength
Professional R&D team
More than 20 R&D engineers are dedicated to researching and developing industrial lithium battery pack products, with a strong focus on software design and development, as well as product software and hardware development capabilities.
Comprehensive R&D scope
PRD offers one-stop service covering battery selection, BMS circuit design, structural design and charger design.
Quality R&D concepts
From production to delivery, the entire process covers safety, reliability, matching test, electromagnetic compatibility test, and other than 60 tests in total, adhering to the concept of 50% design verification + 30% material control + 20% product process, ensuring the superior quality of lithium-ion battery.
